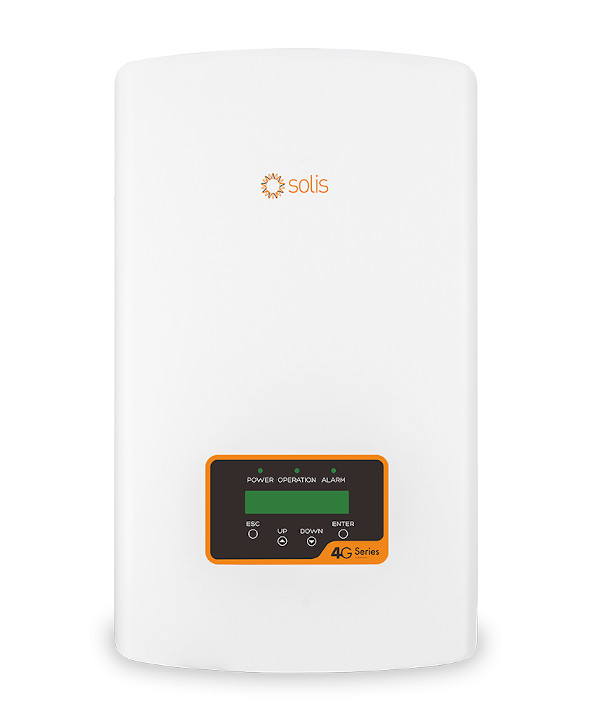

Inverter SOLIS-1P3K-4G

SOLIS-1P3K-4G inverter is designed for PV instalation up to 3.5 kW. with the possibility of division into 2 independent strings. Over 97.8% Max. effciency, 2 MPPT design with precise MPPT algorithm, intergrated Export Power Manager (EPM), compact and lightweight. Natural convection, Fan-less design, longer lifespan.

SKU: 1P3K-4G Categories: , Tag:

Description

SOLIS-1P3K-4G inverter is designed for PV instalation up to 3.5 kW.

      • Over 97.8% Max. effciency
      • Super high frequency switching technology
      • Wide voltage range and low startup voltage
      • 2 MPPT design with precise MPPT algorithm
      • Intergrated Export Power Manager (EPM)
      • Compact and lightweight
      • Friendly and adaptable connection to the grid

Additional information

Producent

Solis

Rated voltage (DC)

330 V

Start-up voltage (DC)

120 V

MPPT voltage range (DC)

90-520 V

Max. input current (DC)

11 A / 11 A

Max. short circuit current

17.2 A / 17.2 A

MPPT number/max. input strings number

2/2

Rated output power (AC)

3 kW

Max. apparent output power (AC)

3.3 kVA

Max. output power (AC)

3.3 kW

Rated grid voltage (AC)

1/N/PE, 220/230V

Rated grid frequency (AC)

50/60Hz

Rated grid output current (AC)

13.6A / 13.0 A

Max. output current (AC)

15.7 A

THDi (AC)

< 3%

Max. efficiency

97.8 %

Max. EU efficiency

97.1 %

DC reverse-polarity protection

Yes

Short circuit protection

Yes

Output over current protection

Yes

Surge protection

Yes

Grid monitoring

Yes

Anti-islanding protection

Yes

Temperature protection

Yes

Integrated DC switch

Optional

Dimensions (W*H*D)

310*543*160 mm

Weight

11.5 kg

Topology

Transformerless

Self consumption

< 1W (night)

Operating ambient temperature range

-25° ~ +60° C

Relative humidity

0-100 %

Ingress protection

IP65

Cooling concept

Natural convection

Max. operation altitude

4000 m

Grid connection standard

VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727

Safety/EMC standard

IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3

DC connection

MC4 connector

AC connection

Quick connection plug

Display

LCD, 2×20 Z

Communication

RS485, Optional: Wi-Fi, GPRS

Datasheet SOLIS-1P3K-4G (EN) Download

Manual SOLIS-1P3K-4G (EN) Download

Certificate IEC 61000 (EN) Download

Certificate IEC 62109 (EN) Download
